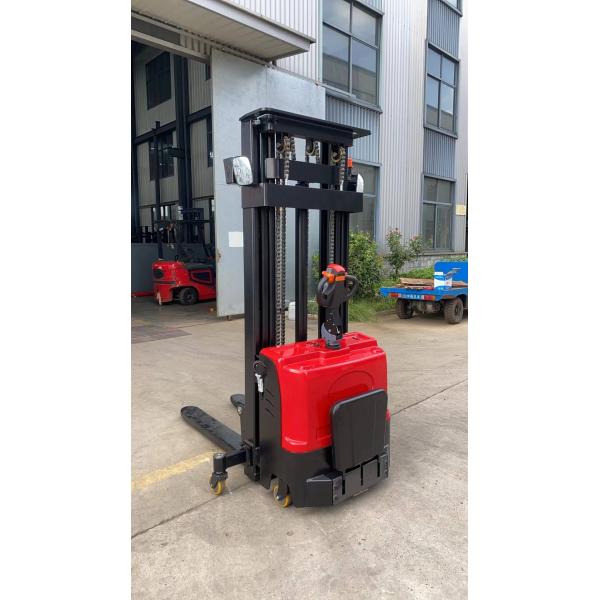

1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork

Place of Origin : Jiangsu, China, CN;JIA

Brand Name : KAD

MOQ : 10

Price : $500

Fork Length : 1070mm

Fork Width : 550/680mm

Drive Type : FWD

Tire Type : PU Wheel

Load Center : 500mm

Turning Radius : 1738/2099mm

Weight : 550kg

Overall Dimensions : 2130(L)*850(w)*2080mm(h)

Battery : 24V/80Ah

Power Source : DC MOTOR

Load Capacity : 1 ton

Lifting Height : 1600mm

Ground Clearance : 130mm

Driving Speed : 4km/h

Gradient : 10°

Contact Now

Product Description

KAD Full Electric Platform Pedal Ride on Stacker 1ton 1.5ton 2ton 3m 4.5m Europe/US Pallet Standard with Compact Design Price

Full electric stackers are used for loading, stacking, stacking, and short distance palletizing of goods. Simple structure, flexible operation, good micro operability, and high safety performance. Suitable for operations in narrow passages and limited spaces, it can enter ship cabins, carriages, and containers for loading, unloading, stacking, and handling of pallet goods.

1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork

Main Features

1. AC drive motor, no carbon brushes ,free maintenance reducing maintenance cost.
2. Vertical drive motor make the inspection and repair more convenient, which perform much better than the horizontal motor.
3. The design of integrated micro-switches, easy for replacement.
4. Battery cover is easy to open, convenient to add distilled water or electrolyte of the battery.
5. Display with hour time and battery status, to remind the operator to charge battery in time
6. Controller self-diagnosis system makes troubleshooting easier.

Specification

Model		CDD1030	CDD1530
Load Capcity	kg	1000	1500
Lifting Height	mm	1600	1600
Load Center	mm	500	500
Fork Size	mm	122010040	122010040
Ground Clearance	mm	130	130
Pedal Length	mm	410	410
Handler Heihgt	mm	1490	1490
Outer Distance Between Forks	mm	685	685
Inner Distance Between Forks	mm	345	345
Tyre type		Polyurethane	Polyurethane
Control Way		Handler	Handler
Speed Regulation Way		Stepless Speed Regulation	Stepless Speed Regulation
The Min. Turning Radius	mm	1500	1500
Driving Speed with Full Loads	km/h	4	4
Gradient	°	10	10
Battery	V/Ah	24V/80A	24V/80A
Driving Motor	KW	1.2	1.2
Lifting Motor	KW	2.2	2.2
Tyre Size	mm	300/250	300/250
Overall Size	mm	217015702100	217015702100
Weight	kg	900	900
Reference Working Time	h	6	6
Increased height each tonnage	mm	1600/2000/2500/3000/3500
Max height	mm		2100/1600/1850/2100/2350

Detailed Images

Machine Parts

Control Handle The famous control handle and function button in China can sensitively control up/down, forward/backward.

Operation panel

Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.

Machine Parts

Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.

Main Features

1. Side positioned drive system

2. Strong caster

3. Easy to manage stability.
